Y+ Calculator
Y+ Calculator
The official app & game
Distributed by UptoPlay
SCREENSHOTS
DESCRIPTION
Use UptoPlay to play online the game Y+ Calculator.

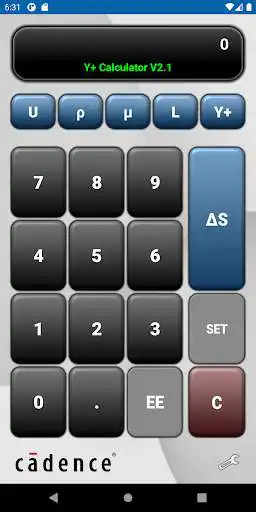

Y+ Calculator is a handy tool for calculating the grid spacing at a wall to achieve a target y+ value for viscous computational fluid dynamics (CFD) computations. Simply specify the flow conditions, the desired y+ value, and compute your grid spacing.
If you are an engineer running viscous CFD computations, achieving a target value for y+ in your grid is essential for both resolved and wall function grids for accurate results. Save time by computing your near-wall cell height for the boundary layer before generating your grid.

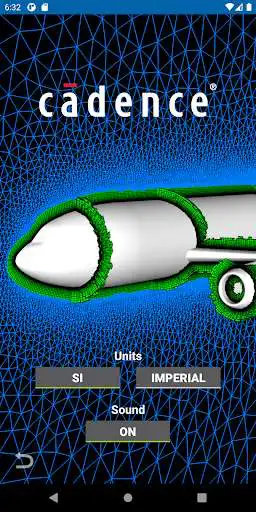

The Y+ Calculator works in either SI or Imperial units and quickly resets to sea level conditions.
This utility is brought to you by Cadence. Reliable people. Reliable tools. Reliable CFD meshing.
Note: Computations are based on flat-plate boundary layer theory from Frank M. Whites Fluid Mechanics 5th edition, page 467.
Enjoy with UptoPlay the online game Y+ Calculator.
ADDITIONAL INFORMATION
Developer: Pointwise is now Cadence Design Systems, Inc.
Genre: Tools
App version: 2.1
App size: 3.6M
Recent changes: Updated to Cadence branding.
Improved keyboard layout.
Comments:
Info could be a bit better also what is the definition of deltaY (cell center or first node node from the wall?)
Awesome tool. Just as good as Pointwise itself.
Most useful app for cfd engineer's
Very comfortable and useful
Fantastic for CFD engineers'
