Pinouts
Pinouts
The official app & game
Distributed by UptoPlay

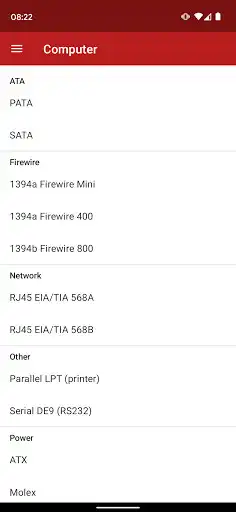

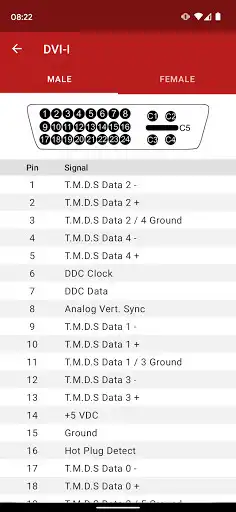

SCREENSHOTS
DESCRIPTION
Use UptoPlay to play online the game Pinouts.
Pinouts is the complete collection of common audio / video / lighting / computer and other connector pinouts.
Audio Connectors
TRS Jack (Balanced) / TS Jack (Unbalanced)
DB25 Analog and AES Breakouts (Tascam / Digidesign and Yamaha)
RCA - Phono
XLR Balanced / XLR Unbalanced
Tec Pro (Clear Com) Comms - circuit and headset
Computer Connectors
Serial-ATA
Parallel-ATA
Firewire 1394a and 1394b
RJ45 - TIA/EIA 568A / TIA/EIA 568B
Parallel LPT (Printer)
Serial DE9 (RS232)
ATX Power / Molex Power / SATA Power
Magsafe (Legacy Macbook power connector)
USB A / B / Micro / Mini / 3.0A
Lighting Connectors
DMX 3 and 5 pin
Scroller
Din 8 pin (analog control)
ILDA (Laser Connector)
Lectriflex / Harting
RCA - Composite / Component
Socapex
Video Connectors
S-video
Scart
VGA
DVI
HDMI
Other
Apple Dock (ipod - iphone - ipad)
Cresnet
Playstation Audio Visual
XBOX 360 Audio Visual
Wii Audio Visual
Buy the "Pro Upgrade" and get:
No Adverts
Search feature
Favourites feature
Enjoy with UptoPlay the online game Pinouts.
ADDITIONAL INFORMATION
Developer: Dan Sullivan
Genre: Tools
App version: 2.3.1
App size: 4.3M
Recent changes: Added PCIE Power pinout
Comments:
It's ok but the pice power is slightly incorrect on the +2 pin is a sense pin that you have to connect in order for the gpu to pick up that a 8 pin is plugged in correctly otherwise it's a good app. Can't say anything about ads cause I have a pi hole that blocks all ads in my network
Very helpful
Great resource!
Very handy
Usefull for av'
