Deflection is the most interactive, fast, and precise app available for structural beam analysis. Design visually and obtain engineering results, graphs, and equations instantaneously!

Simply place loads and supports on the beam, and see how it bends. Find a cross section in the built-in library, or define a custom shape. Deflection, internal stresses, and other useful results are automatically updated.

This software is the result of over six years of continuous development and innovation aimed at mechanical engineering, civil engineering, and structural engineering. This tool will help you apply beam elastic theory from day 1 as you are learning Mechanics of Materials, and it will be your go-to pocket reference any time in the future.

RESULTS

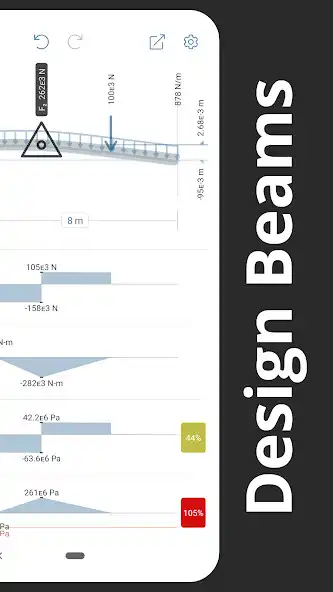

Obtain design results and diagrams in real-time.

Shear force
Bending moment
Deflection distance
Internal bending stress
Internal shear stress

CROSS SECTION DATABASES

Specify values directly, or find common shapes and materials using the built-in databases.

United States
Europe
Japan
India
Russia
Great Britain
Canada
Australia

CROSS SECTION EDITOR

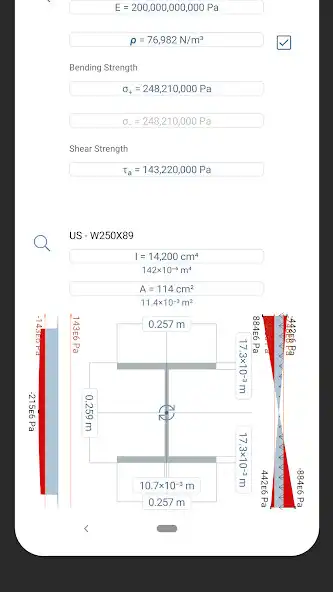

Edit built-in cross sections. Shape properties are automatically calculated.

Moment of inertia
Area

UNLIMITED LOADS AND SUPPORTS

Simply drag any load or support on the beam.

Concentrated point loads
Distributed loads
Moment loads
Simple supports
Fixed supports
Fixed hinges
Floating Gerber hinges

OTHER FEATURES

Apply beam self-weight optionally
Automatic detection of local maxima and minima in diagrams
Unlimited design files
Quick-start templates
Metric and standard measurement units

CONTACT

We want to hear from you! Issues, questions, or requests? Please submit a review or email [email protected]
