Play this online game named BLUE RELAY: Bluetooth relay.

BLUE RELAY is a Bluetooth board, controlling 4 relays SPDT: Single Pole, Double Throw.

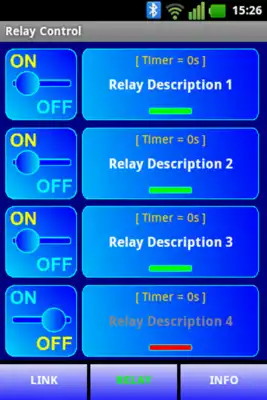

The software is simple and easy and allows you to set the status of the relay in any moment.

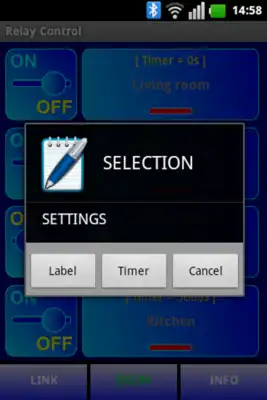

Each relay can be individually set to operate in bistable mode (ON / OFF) or monostable mode (timed mode).

For each relay a label can be associated (max. 24 characters). The label allows you to immediately identify the function or type of load connected to the relay.

The program also incorporates a function for the automatic reading of the state of the relays (Open/Close) which allows the operator to know at any moment the actual configuration of the relays themselves.

The user can also set a PIN code to access the Bluetooth unit to ensure maximum safety and prevent unauthorized access. The PIN code can be up to 9 digits.

The unit is also equipped with non-volatile memory. This allows the unit to automatically restore the state of the relays even after a power interruption.

The program automatically handles English and Italian language: if the language on your smartphone or tablet is not Italian the English language is automatically selected.

The basic features of the module are:

> Bluetooth relay unit with integrated antenna
> Power supply voltage: 12V
> Maximum current consumption: 250mA
> 4 relays @ 10Amper (up to 250Vac)
> Bistable or Monostable (Timed) mode
> Programmable pulse duration from 1 to 6550sec (Monostable mode)
> Relay status storage on non volatile memory
> Automatic reading of the state of the relays via software
> Up to 9 digit PIN code for safe access
> English and Italian language support
> Board dimensions: 83.6x69.2x19.5 mm
> Low cost of the board
> Free Android software

For further details or board purchase visit: www.indep.it

Updates:

1.1.12 - English and Italian language support
1.2.20 - Relay Management in Bistable mode (ON/OFF) and Monostable Mode (Timed)
