Play this online game named Arduino Air Conditionner Controller.

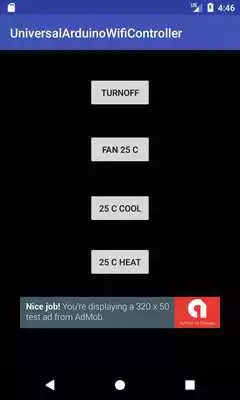

there is 4 control command of this app
1-turn off AC
2-fan mode 25C
3-cooling mode 25 C
4-heating mode 25 C
according to Arduino code its different from AC to other kind of AC
Arduino can work with the most common brand(Samsung,LG,DAIKIN,HITASHI,SHARP,PETRA,THMSON,MITSUBISHI,panasonic)
the principle of work :android send the command to Arduino over Arduino mega and Ethernet shield and according to the command its send IR signal using IR transmitter which is connected to Arduino mega pin 9 and ground
requirement :1-arduino mega
2-ethernet shield
3-IR TX and RX
4-ethernet cable between (router) and Ethernet shield
5-power supply for Arduino mega and Ethernet shield (ups charger or any power adapter)
6-breadboard
7-male to male cables
I will explain all the above description in video and let u understand how to use this application and to be able to get the benefits of controlling your AC over Ethernet please check these links below
https://youtu.be/iAxoMic7RbY
https://youtu.be/GcsMTE-yRy4 Arduino codes : please contact me on this email : ahmadalkilani [email protected] and I will send u all the arduino code there is 2 arduino codes one it’s name is long u will not change this code just uplode to your arduino and start capturing and decoding remote Controller IR device using IR receiver which is connected to arduino right to 5 volt ,mid to the ground and the left to pin number 2and then we copy the decoded code to the second arduino code which has 4 string for Off,fan,cool,heating
