Play this online game named Process Piping 90 Degree Branch Connection.

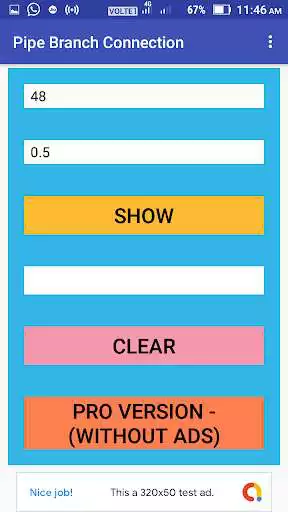

ASME B 31.3 PROCESS PIPING 90 DEGREE BRANCH CONNECTION APP CAN BE USED TO FIND THE BRANCH CONNECTION TYPE VERY EASILY. NO NEED TO SEARCH IN LEGEND AND CHART.

According to the Header size and the Branch size in NPS, the branch connection type can be found out.

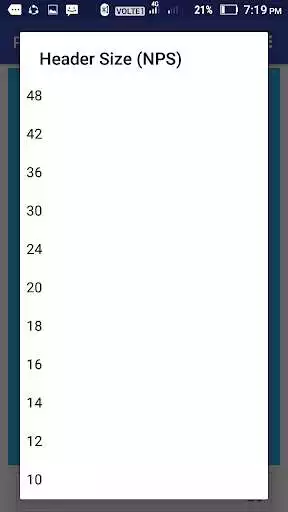

Header Size in NPS are as follows

48, 42 , 36, 30, 24, 20, 18, 16, 14, 12, 10, 8, 6, 4, 3, 2, 1.5, 1, 0.75, 0.5

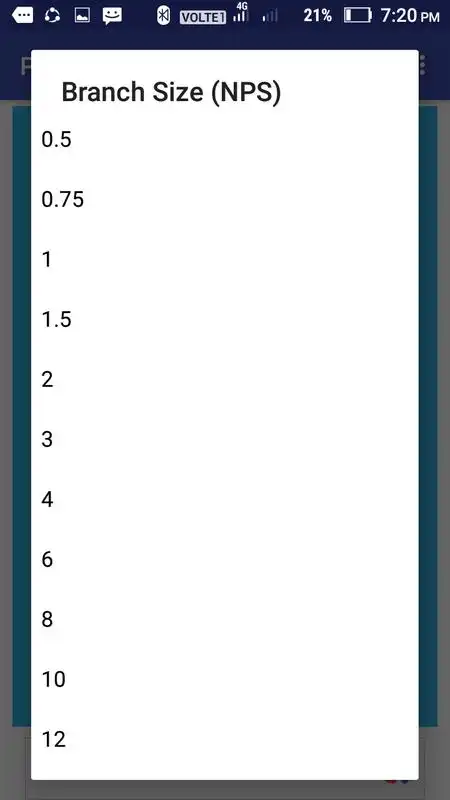

Branch Size in NPS are as follows

0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 30, 36, 42, 48

The following branch types can be found out for the x axis HEADER SIZE and y axis BRANCH SIZE CHART

- Reducing Tee

- Branch weld w/ Reinforcing Pad ( Pad thickness equals run pipe thickness. Pad width equals 1/2 branch OD.

-Sockolet

- Tee

- Weldolet
